SMTCL New-Generation VMC850Q Vertical Machining Center Features Upgraded Structural Performance, Enabling Ultra-Precision Processing And High-Quality

Brand Name : SMTCL/SYMG

Model Number : VMC850Q

Certification : ISO certification

Place of Origin : China

MOQ : 1 Set

Price : Negotiable

Payment Terms : L/C,T/T,Western Union

Supply Ability : 50 sets per month

Delivery Time : 45-60 days

Packaging Details : The wooden case，Tin trunk ,Other seaworthy packing

Brand : SMTCL

Modle : VMC850Q

CNC Control System : FANUC, Siemens

Table size (L×W) : 1000x500mm

X Axis travel : 850mm

Y Axis travel : 550mm

Z Axis travel : 540mm

Feed Speed(mm/min) : 1 - 10000 mm/min

Spindle Motor Power(kW) : 7.5/11

Tool Magazine Capacity : 24

Contact Now

SMTCL New-Generation VMC850Q Vertical Machining Center Features Upgraded Structural Performance, Enabling Ultra-Precision Processing And High-Quality

Product advantages:

  • High rigidity & anti-vibration design with optimized rib structures for bed, slide and column.
  • Ultra-precision machining: micron-level interpolation, surface finish Ra ≤ 0.6μm, capable of machining 0.08mm diameter needle parts.
  • Larger machining range with Y-axis travel increased to 550mm for versatile part processing.
  • Equipped with imported roller linear guides, ball screws, bearings, plus Taiwan spindle and tool magazine.
  • Fully enclosed tool magazine suits various materials and reduces maintenance.
  • Higher bed cavity and enlarged coolant tank capacity.
  • Optional high-performance motor spindle, linear scale, spindle cooling (oil/water chiller).
  • Pre-configured automation interface for excellent integration capability.
  • Professionally simulated and optimized, verified by precision manufacturing and strict testing, delivering outstanding cutting performance for diverse parts.

SMTCL New-Generation VMC850Q Vertical Machining Center Features Upgraded Structural Performance, Enabling Ultra-Precision Processing And High-Quality

Product performance:

  • High rigidity:

    Bed frame with 8 base supports;
    Thickened sliding seat cavity;
    Independent rib support for the column guide surface

  • High dynamic response:

    Spindle speed: 10000 rpm;
    Three-axis rapid movement: 48/min;
    Error compensation technology

  • High performance:

    Three-axis stroke: 850/550/540mm;
    Quantitative processing standards,
    Processing accuracy: IT6 grade

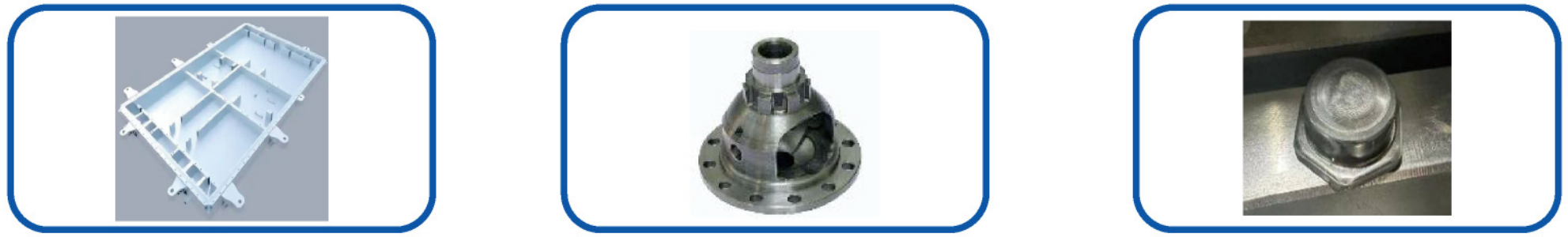

Key industries:

  1. New energy industry: Battery tray
  2. Automotive industry: Steering knuckle
  3. General machinery: Screw head

SMTCL New-Generation VMC850Q Vertical Machining Center Features Upgraded Structural Performance, Enabling Ultra-Precision Processing And High-Quality

Product Paramenters:

Item Unit Specifications
Worktable Table size (L*W) mm 1000*500
  Max load on the table kg 600
Capacity X axis travel mm 850
Y axis travel mm 550
Z axis travel mm 540
Spindle nose to table surface mm 120-660
Spindle Spindle speed rpm 10000
Spindle taper/spindle shank mm 7/24 taper
BT40
Spindle motor kw 7.5/11
Maximum output torque N.m 35.8/70
Spindle drive type   Synchronous tooth belt
Feed rate X,Y,Z rapid traverse M/min 48/48/48
Max cutting feed rate M/min 20
Accuracy Positioning accuracy X/Y/Z mm 0.008/0.006/0.006
Repeatability positioning X/Y/Z mm 0.005/0.004/0.004
Tool storage capacity pc Arm type 24
Max tool diameter mm 150(80)
Turret Max tool length mm 250
Tool change time(T-T) sec 2.5
Others Overall dimensions(L*WxH) mm 2400*3125*2840
Net machine weight kg 5100
Total power requirment KVA 18
Standard configuration: FANUC numerical control system, 10,000 rpm spindle, BT40-24 disc tool magazine, water tank + bed double helical chip removal system:
Selective configuration: Chain-type chip remover, four-axis turntable, water outlet at the center of the spindle, automatic door
